| Pic | Model / Name | Description | Download | |
|---|---|---|---|---|
 |

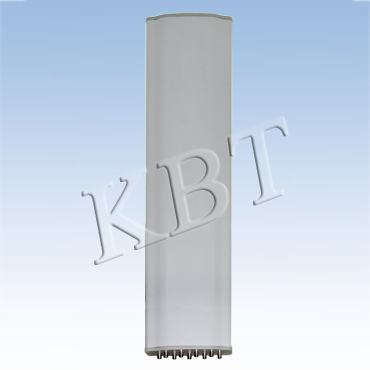

KDA4-1826D15AT6-H TD-LTE Smart Antenna |
Fred.(MHz): 1880-1920/2010-2025/2555-2635 BW: Gain(dBi): ≥14 Pol: ±45° Size(mm): 1370×310×128 Price($): |
 |
|
 |

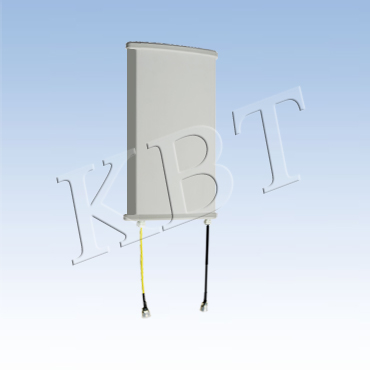

TDJ-D0727BFG Indoor Dual Pol. Directional Wall Mount LTE Antenna |
Fred.(MHz): 698-960/1710-2700 BW: E:85 H:90±15/E:55 H:70±15 Gain(dBi): 6/8 Pol: Ver.and Hor. Size(mm): 350×176×64 Price($): |
|
|
 |

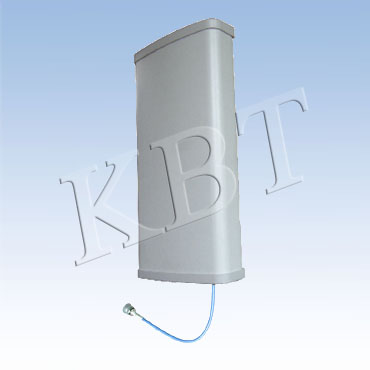

TDJ-0727BFGZ Directional Wall Mount Antenna |
Fred.(MHz): 698-960/1710-2700 BW: E:65/55 H:90/70 Gain(dBi): 8/10 Pol: Ver. Size(mm): 300×164×85 Price($): |
|
|
 |

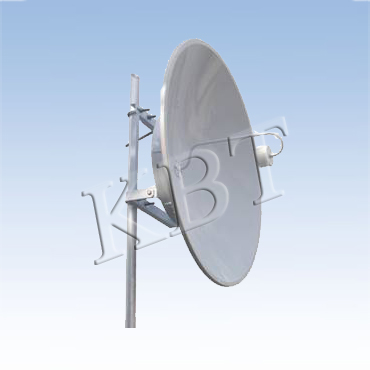

TDJ-D2327P12 Dual Polarization Parabolic Antenna |
Fred.(MHz): 2300-2700 BW: E:6.5 H:6.5 Gain(dBi): 27 Pol: Ver.and Hor. Size(mm): Φ1200 Price($): |
|
|
 |

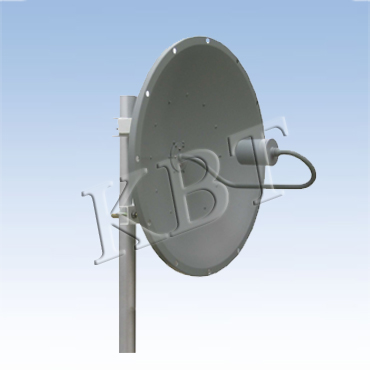

TDJ-D2327P6 Dual Polarization Parabolic Antenna |
Fred.(MHz): 2300-2700 BW: E:12 H:12 Gain(dBi): 21.5 Pol: Ver.and Hor. Size(mm): 600 Price($): |
|
|
 |
TQJ-0727XDRT-M LTE Indoor Ceiling Mount Antenna |
Fred.(MHz): 698-960/1710-2700 BW: 360 Gain(dBi): 2±0.5/4±1 Pol: Ver. Size(mm): Φ202.5×113.5 Price($): |
|
|
 |

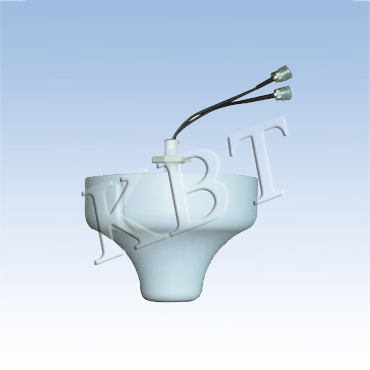

TQJ-0727XDTx2 LTE Ceiling Mount Antenna |
Fred.(MHz): 698-960/1710-2700 BW: - Gain(dBi): 3±0.5/5±1 Pol: Ver. Size(mm): φ200×140 Price($): |
|
|
 |
TQJ-D1727XDQ Indoor Ceiling Mount Antenna |
Fred.(MHz): 1710-2700 BW: - Gain(dBi): 4±1 Pol: Ver. Size(mm): φ165.5×94 Price($): |
|
|
 |

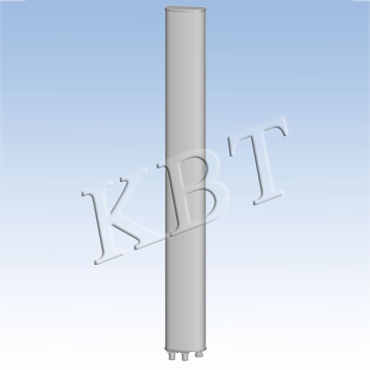

KBT65DP18-1727FE Directional VET Panel Antenna |
Fred.(MHz): 1710-2690 BW: 65 Gain(dBi): 18 Pol: ±45° Size(mm): 1400×160×80 Price($): |
|
|
 |

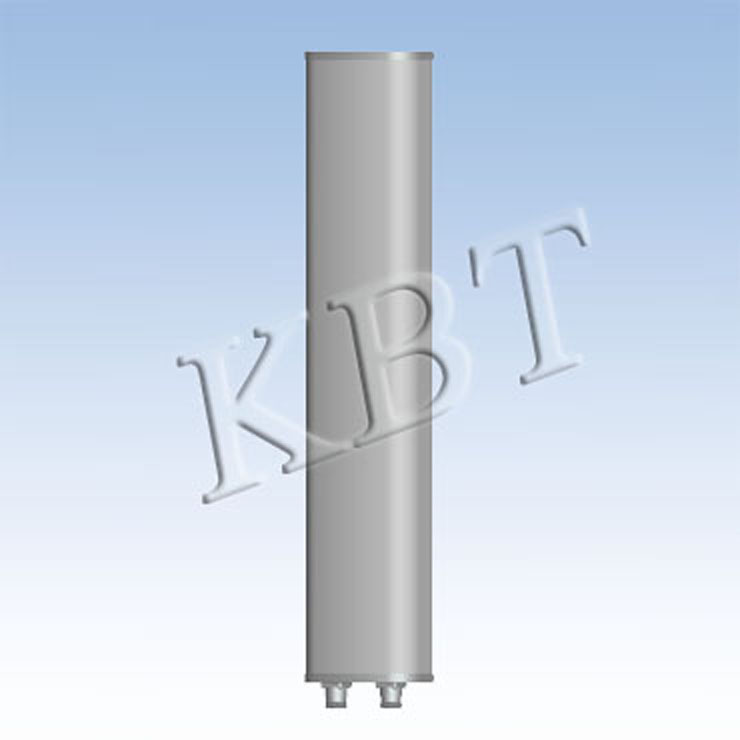

KBT65DP15-1727AT6 Directional Panel Antenna |
Fred.(MHz): 1710-2690 BW: 65 Gain(dBi): 15 Pol: ±45° Size(mm): 660×160×80 Price($): |
|
|
 |

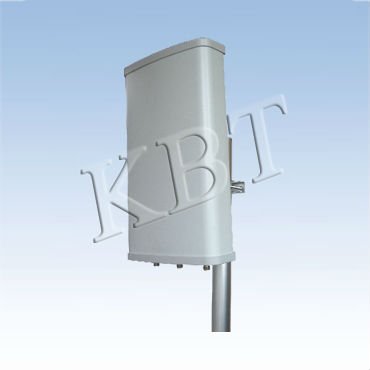

TDJ-TV2327J12 MIMO Directional Panel Antenna |
Fred.(MHz): 2300-2700 BW: E:15 H:120 Gain(dBi): 3×12 Pol: Ver. Size(mm): 480×280×85 Price($): |
|
|
 |

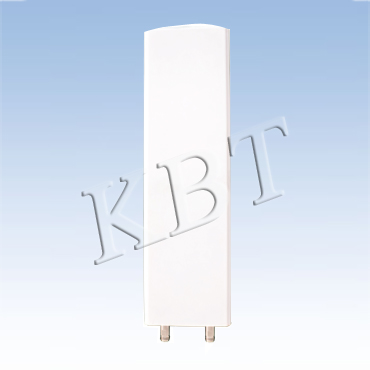

TDJ-X2600GB14 X-Cross Panel Antenna |
Fred.(MHz): 2555-2635 BW: E:14 H:65±5 Gain(dBi): 14 Pol: ±45° Size(mm): 458×138×32 Price($): |
|
|
 |

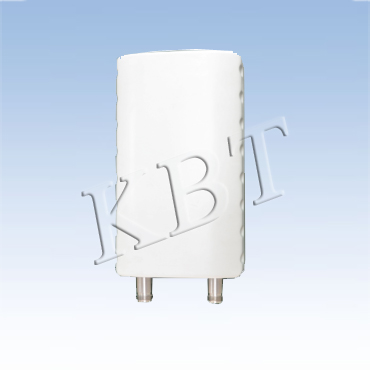

TDJ-X2600BFO12 X-Cross Panel Antenna |
Fred.(MHz): 2555-2635 BW: E:30 H:65±5 Gain(dBi): 12 Pol: ±45° Size(mm): 210×120×42 Price($): |
|
|
 |

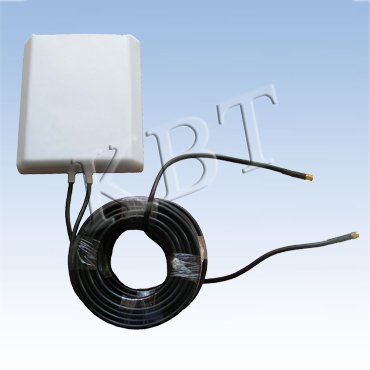

TDJ-2427BFD-Y X-Cross Panel Antenna |
Fred.(MHz): 2400-2700 BW: E:32±8 H:32±8 Gain(dBi): ≥6 Pol: ±45° Size(mm): 210×180×44 Price($): |
|
|
 |

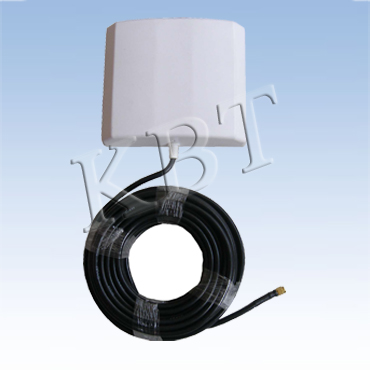

TDJ-2427BFC-Y Panel Antenna |
Fred.(MHz): 2400-2700 BW: E:43 H:40 Gain(dBi): 10.6 Pol: Ver. Size(mm): 163×143×35 Price($): |
|
