| Pic | Model / Name | Description | Download | |
|---|---|---|---|---|
 |

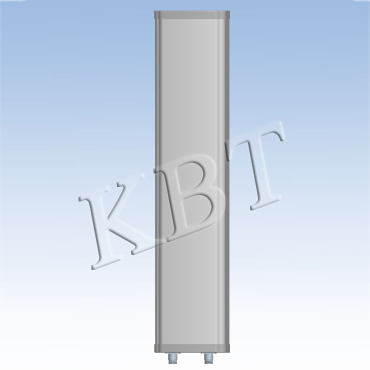

KBT65DP18-2327RT0 Directional Panel Antenna |
Fred.(MHz): 2300-2700 BW: E:6.5,6 H:65,63 Gain(dBi): 17.5,18 Pol: ±45° Size(mm): 1160×128×56 Price($): |
 |
|
 |
KBT90VP16-2327RT0 Directional Panel Antenna |
Fred.(MHz): 2300-2700 BW: E:7.5,7 H:90,88 Gain(dBi): 15.5,16 Pol: Ver. Size(mm): 940×128×56 Price($): |
|
|
 |
KBT90VP15-2327RT0 Directional Panel Antenna |
Fred.(MHz): 2300-2700 BW: E:9.5,9 H:90,88 Gain(dBi): 14.5,15 Pol: Ver. Size(mm): 720×128×56 Price($): |
|
|
 |
KBT90VP14-2327RT0 Directional Panel Antenna |
Fred.(MHz): 2300-2700 BW: E:15.5,15 H:90,88 Gain(dBi): 13.5,14 Pol: Ver. Size(mm): 500×128×56 Price($): |
|
|
 |
KBT120VP14-2327RT0 Directional Panel Antenna |
Fred.(MHz): 2300-2700 BW: E:7.5,7 H:115,120 Gain(dBi): 13.5,14 Pol: Ver. Size(mm): 940×128×56 Price($): |
|
|
 |
KBT120VP13-2327RT0 Directional Panel Antenna |
Fred.(MHz): 2300-2700 BW: E:9.5,9 H:115,120 Gain(dBi): 12.5,13 Pol: Ver. Size(mm): 720×128×56 Price($): |
|
|
 |

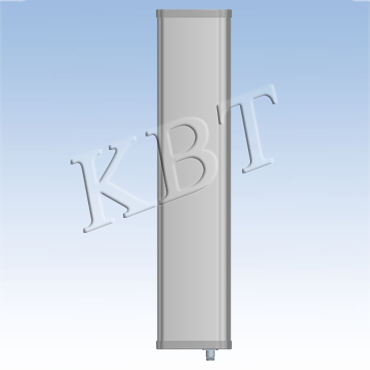

KBT120VP12-2327RT0 Directional Panel Antenna |
Fred.(MHz): 2300-2700 BW: E:15.5,15 H:115,120 Gain(dBi): 11.5,12 Pol: Ver. Size(mm): 500×128×56 Price($): |
|
|
 |

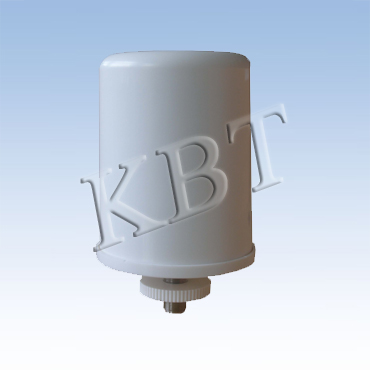

TQJ-0727FS Omni Ceiling Mount Antenna |
Fred.(MHz): 698-896/1700-2700 BW: - Gain(dBi): 3/3.5 Pol: Ver. Size(mm): φ100×130 Price($): |
|
|
 |

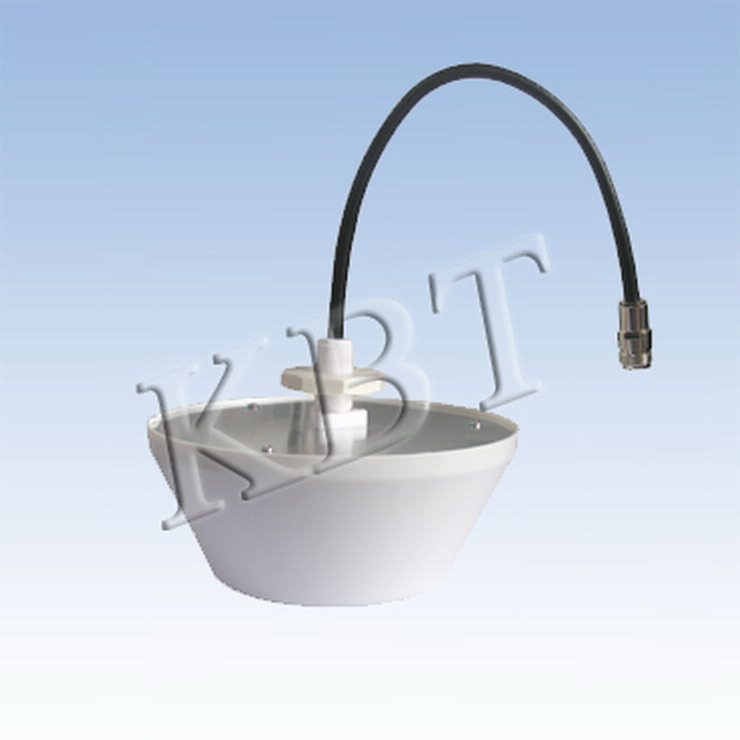

TDJ-0727XDA Directional Ceiling Mount Antenna |
Fred.(MHz): 698-960/1710-2700 BW: E:100 H:95±15/E:70 H:75±15 Gain(dBi): 5/7 Pol: Ver. Size(mm): φ170×72 Price($): |
|
|
 |
TQJ-0727XDA-M Omni Ceiling Mount Antenna |
Fred.(MHz): 698-960/1700-2700 BW: - Gain(dBi): 2/5 Pol: Ver. Size(mm): φ170×72 Price($): |
|
|
 |
TQJ-0727FSA Omni Ceiling Mount Antenna |
Fred.(MHz): 698-896/1700-2700 BW: - Gain(dBi): 3/3.5 Pol: Ver. Size(mm): φ100×130 Price($): |
|
|
 |
TDJ-0727DSG Full Band Directional Panel Antenna |
Fred.(MHz): 698-806/806-960/1700-2700 BW: E:65/55 H:90±10/70±10 Gain(dBi): 7/8.2/9.5 Pol: Ver. Size(mm): 395×265×69 Price($): |
|
|
 |

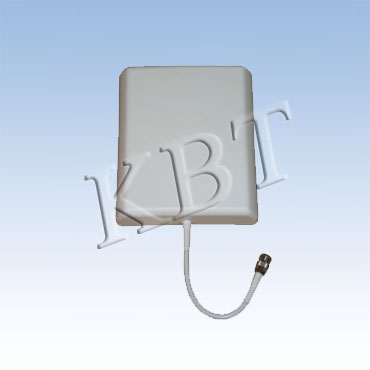

TDJ-0727BKML-M Directional Wall Mount Antenna |
Fred.(MHz): 698-960/1700-2700 BW: E:55/45 H:70/60 Gain(dBi): 7/10 Pol: Ver. Size(mm): 210×180×44 Price($): |
|
|
 |

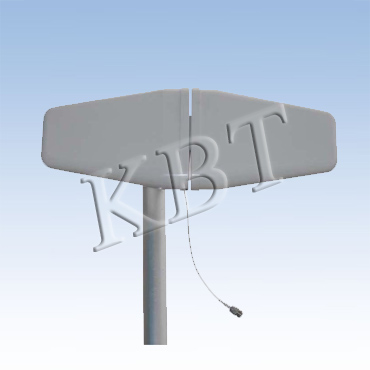

TBJ-0727DSL Full Band Directional Panel Antenna |
Fred.(MHz): 790-960/1710-2700 BW: E:60/50 H:85/60 Gain(dBi): 6/7 Pol: Ver. Size(mm): 588×210×65 Price($): |
|
|
 |

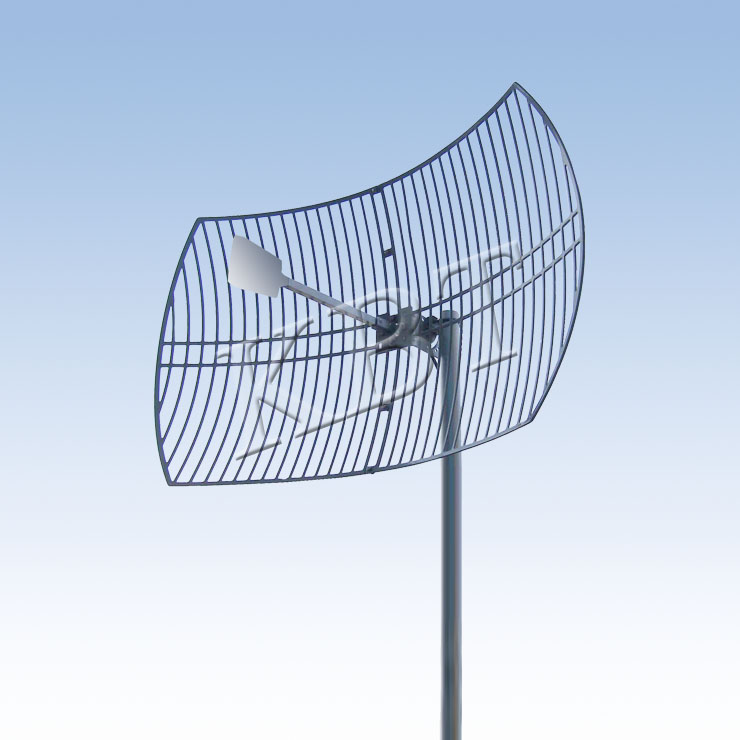

TDJ-2327SPL9D Parabolic Antenna |
Fred.(MHz): 2300-2700 BW: E:7 H:11 Gain(dBi): 25 Pol: Ver. Size(mm): 600×900 Price($): |
|
