| Pic | Model / Name | Description | Download | |
|---|---|---|---|---|
 |

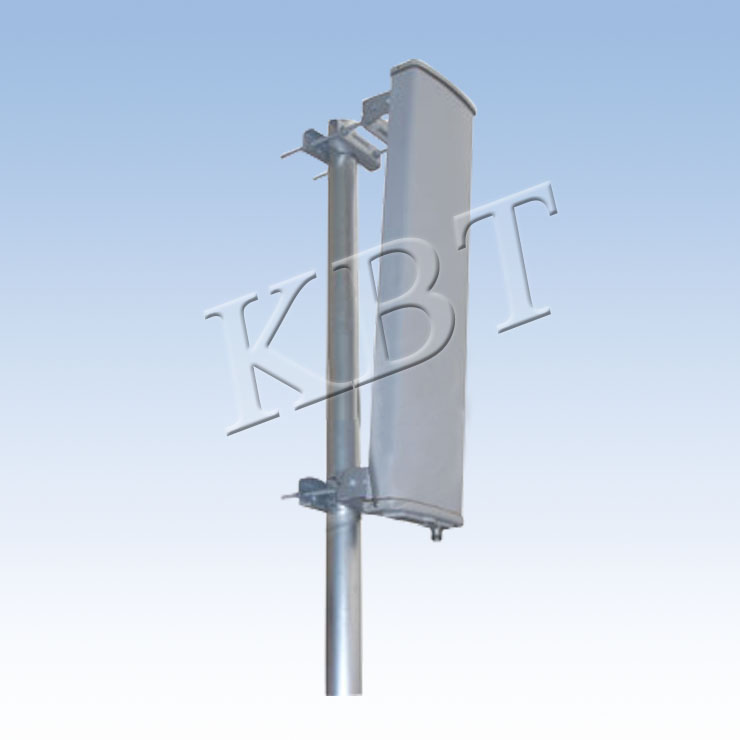

TDJ-2600G 2.6GHz Panel Antenna |
Fred.(MHz): 2500-2700 BW: E:15 H:60 Gain(dBi): 15 Pol: Ver. Size(mm): 520×160×60 Price($): |
 |
|
 |

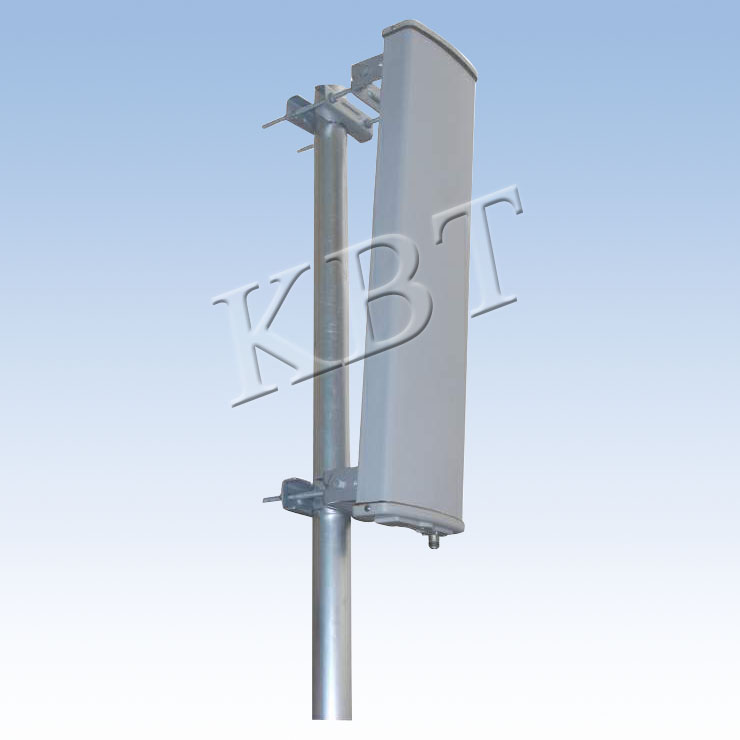

TDJ-2600G18 2.6GHz Panel Antenna |
Fred.(MHz): 2500-2700 BW: E:7 H:60 Gain(dBi): 18 Pol: Ver. Size(mm): 1050×160×60 Price($): |
|
|
 |

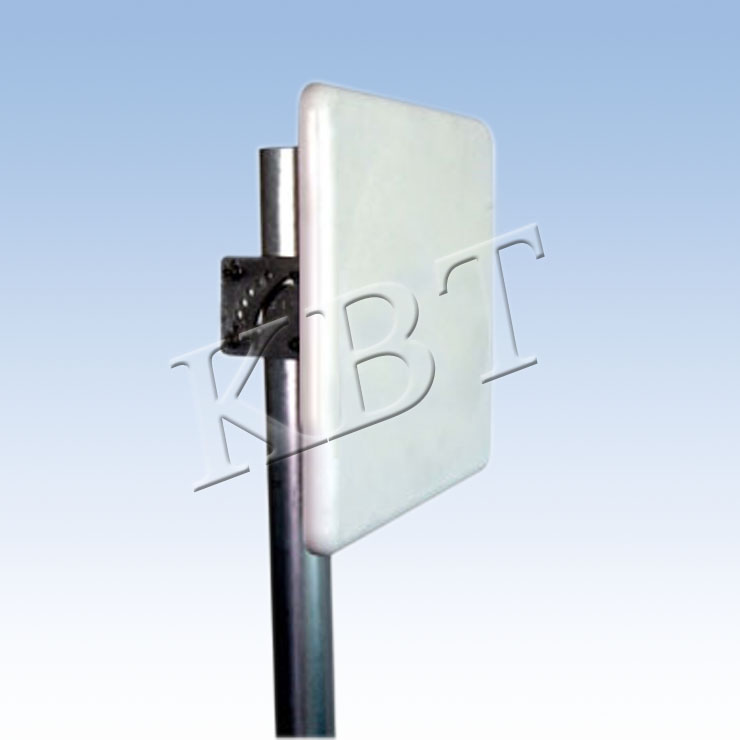

TDJ-2600BKT 2.6GHz Panel Antenna |
Fred.(MHz): 2500-2700 BW: E:20 H:20 Gain(dBi): 18 Pol: Ver.or Hor. Size(mm): 305×305×25 Price($): |
|
|
 |

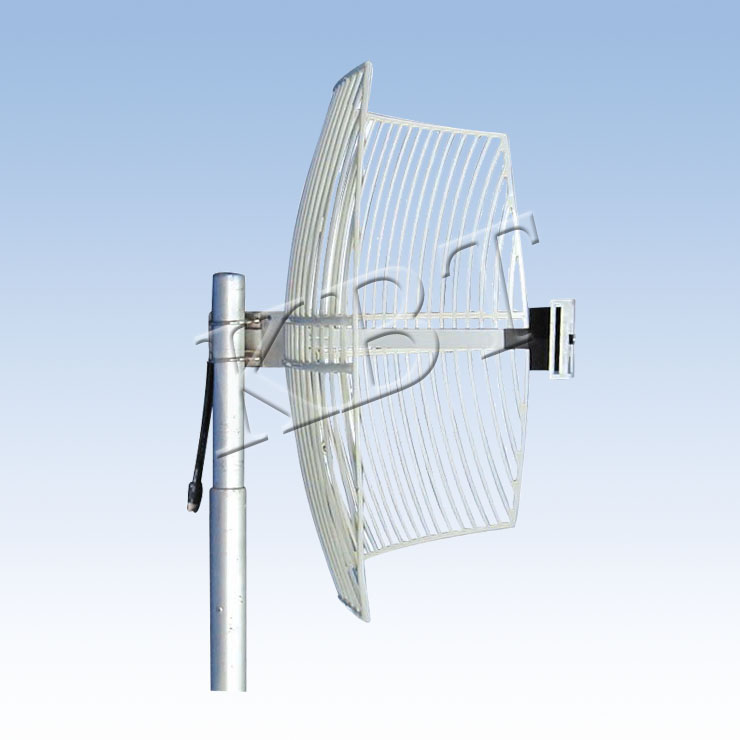

TDJ-2600SPL9 2.6GHz Grid Parabolic Antenna |
Fred.(MHz): 2500-2700 BW: E:13 H:9 Gain(dBi): 24 Pol: Ver.or Hor. Size(mm): 600×900 Price($): |
|
|
 |
TDJ-2600SPL6 2.6GHz Parabolic Antenna |
Fred.(MHz): 2500-2700 BW: E:16 H:12 Gain(dBi): 19 Pol: Ver.or Hor. Size(mm): 400×600 Price($): |
|
|
 |

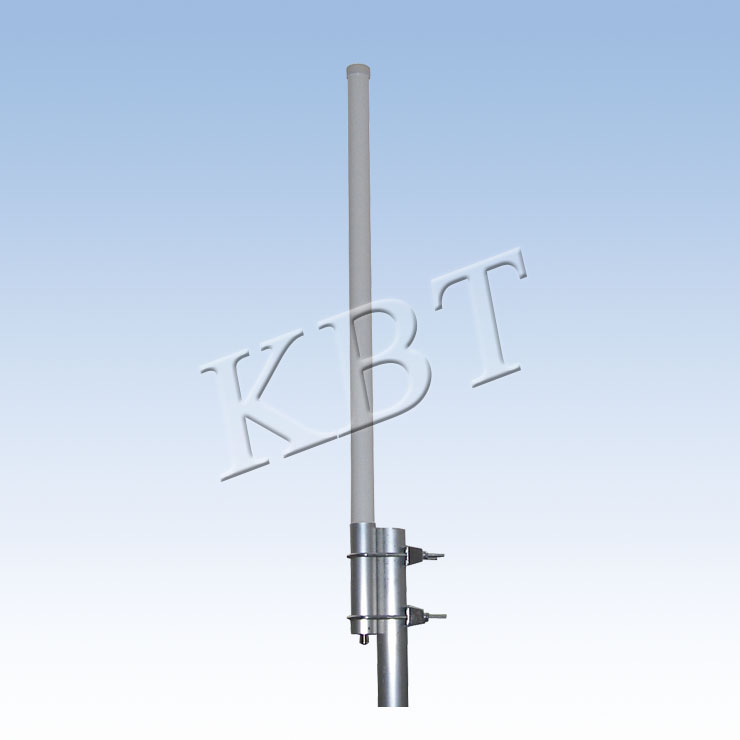

TQJ-2527A12 Fiberglass Omni Antenna |
Fred.(MHz): 2500-2700 BW: E:7 Gain(dBi): 12 Pol: Ver. Size(mm): 1020 Price($): |
|
|
 |

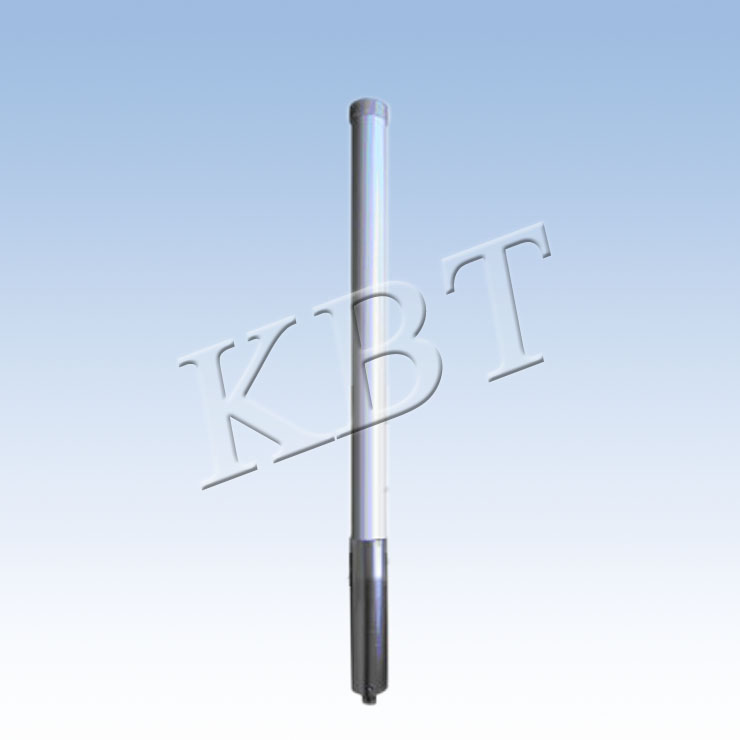

TQJ-2527A6 Fiberglass Omni Antenna |
Fred.(MHz): 2500-2700 BW: E:28 Gain(dBi): 6 Pol: Ver. Size(mm): 552 Price($): |
|
|
 |
KBT90DP17-3338AT0 Directional Panel Antenna |
Fred.(MHz): 3300-3800 BW: E:6.5 H:90 Gain(dBi): 2x17 Pol: ±45° Size(mm): 800×128×56 Price($): |
|
|
 |
KBT90DP16-3338AT0 Directional Panel Antenna |
Fred.(MHz): 3300-3800 BW: E:7.5 H:65 Gain(dBi): 2x16 Pol: ±45° Size(mm): 650×128×56 Price($): |
|
|
 |
KBT90DP15-3338AT0 Directional Panel Antenna |
Fred.(MHz): 3300-3800 BW: E:9. 5 H:90 Gain(dBi): 2x15 Pol: ±45° Size(mm): 500×128×56 Price($): |
|
|
 |

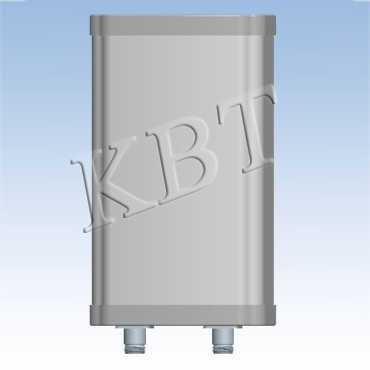

KBT90DP14-3338AT0 Directional Panel Antenna |
Fred.(MHz): 3300-3800 BW: E:15 H:90 Gain(dBi): 2x14 Pol: ±45° Size(mm): 350×128×56 Price($): |
|
|
 |

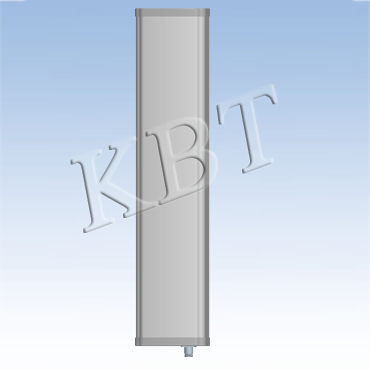

KBT65VP18-3338AT0 Directional Panel Antenna |
Fred.(MHz): 3300-3800 BW: E:6.5 H:65 Gain(dBi): 18 Pol: Vertical Size(mm): 800×128×56 Price($): |
|
|
 |

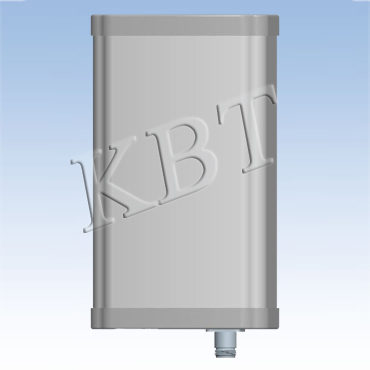

KBT65VP15-3338AT0 Directional Panel Antenna |
Fred.(MHz): 3300-3800 BW: E:15 H:65 Gain(dBi): 15 Pol: Vertical Size(mm): 350×128×56 Price($): |
|
|
 |
KBT65DP18-3338AT0 Directional Panel Antenna |
Fred.(MHz): 3300-3800 BW: E:6.5 H:65 Gain(dBi): 2x18 Pol: ±45° Size(mm): 800×128×56 Price($): |
|
|
 |
KBT65DP17-3338AT0 Directional Panel Antenna |
Fred.(MHz): 3300-3800 BW: E:7.5 H:65 Gain(dBi): 2x17 Pol: ±45° Size(mm): 650×128×56 Price($): |
|
