500MHz,600MHz,700MHz Parabolic Antennas

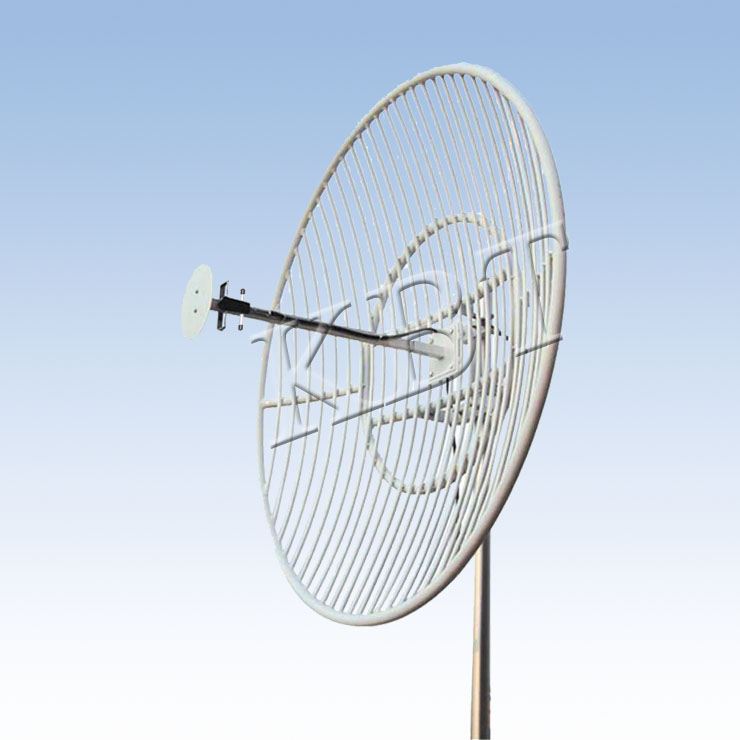

  • TDJ-500SPL15 Grid Parabolic Antenna
  • Model: TDJ-500SPL15
  • Product Type: 500MHz,600MHz,700MHz Parabolic Antennas
  • Place of origin: China
  • Unit Price: $
  • MOQ:
  • Brand Name: Kenbotong/KBT
Applications
* 480-590MHz band
* Wireless video transmission system
* Long-distance trunking
* DTTB,CMMB,DVB-T
Features
* High gain
* Low VSWR
* High quality welded aluminum alloy grid
* UV stable coat finish, Strong protection
* Strong adaptability of environment
* Low wind loading
* Supplied with mounting kits
Specifications
Model
TDJ-500SPL15
Frequency Range- MHz
480-590
Bandwidth-MHz
30
Gain-dBi
14.5
Vertical Beamwidth-°
27
Horizontal Beamwidth-°
27
F/B Ratio-dB
≥20
VSWR
≤1.5
Impedance-Ω
50
Polarization
Vertical
Maximum Power-W
200
Connector
N female or customization
Dimension-m
Ф1.5
Weight-Kg
15
Mounting Mast Diameter-mm
Ф50 to 75
