Specifications
|
|
| Model |

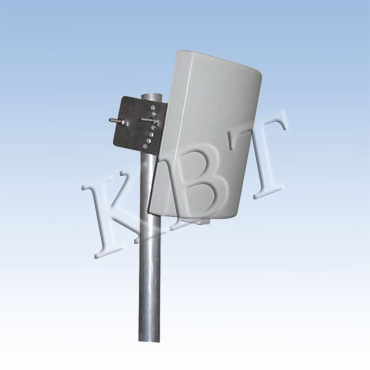

TDJ-900BKB-Y
|
| Frequency Range-MHz |
870 to 960
|
| Bandwidth-MHz |
90
|
| Gain-dBi |
7
|
| Vertical Beamwidth-° |
58
|
| Horizontal Beamwidth-° |
70
|
| VSWR |
≤1.5
|
| Impedance-Ω |
50
|
| Polarization |
Vertical or Horizontal
|
| Maximum Power-W |
50
|
| Connector |
N female
|
| Dimensions-mm |
240×230×50
|
| Weight-Kg |
0.35
|
| Pole Diameter-mm | φ40～50 |
